Zen Pergolas

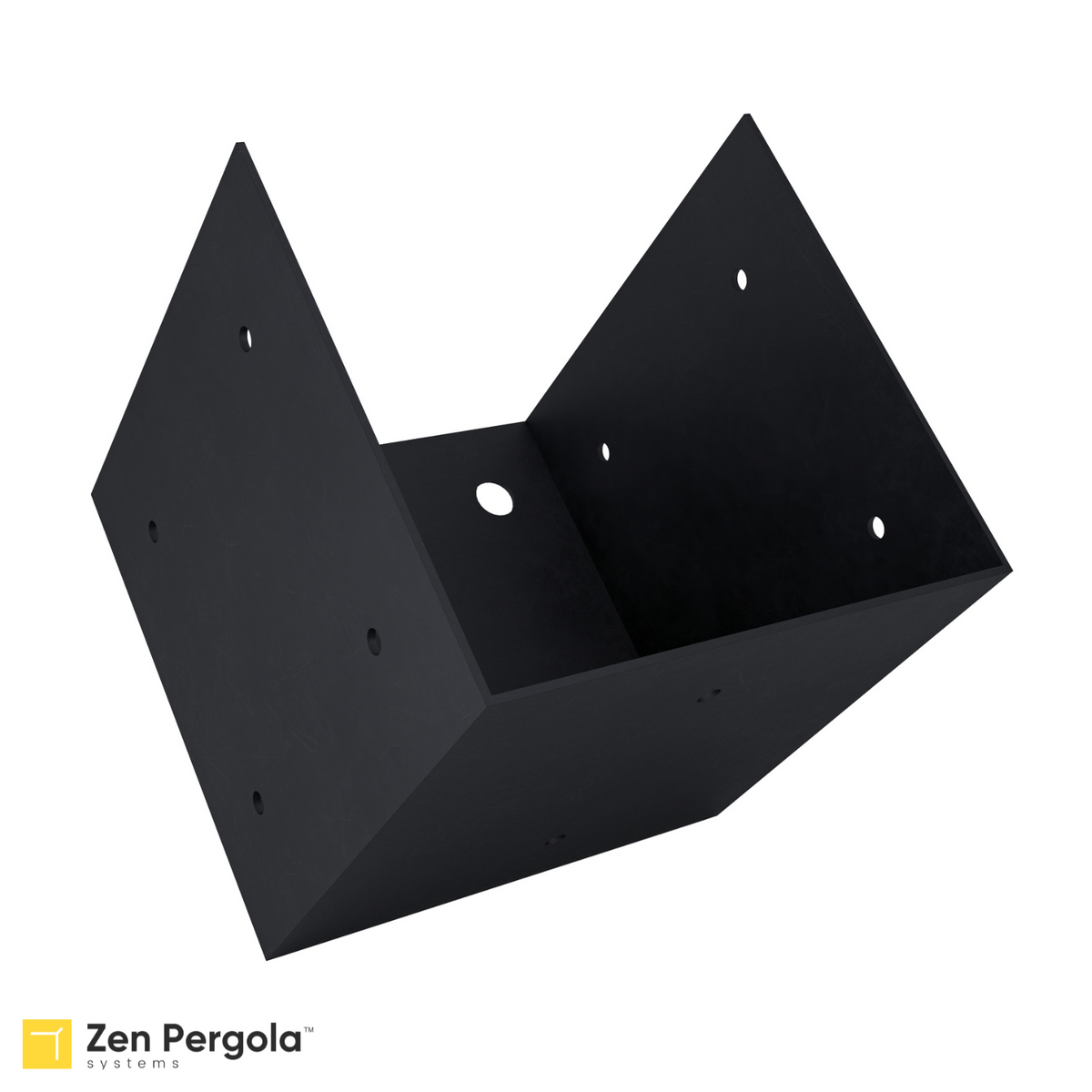

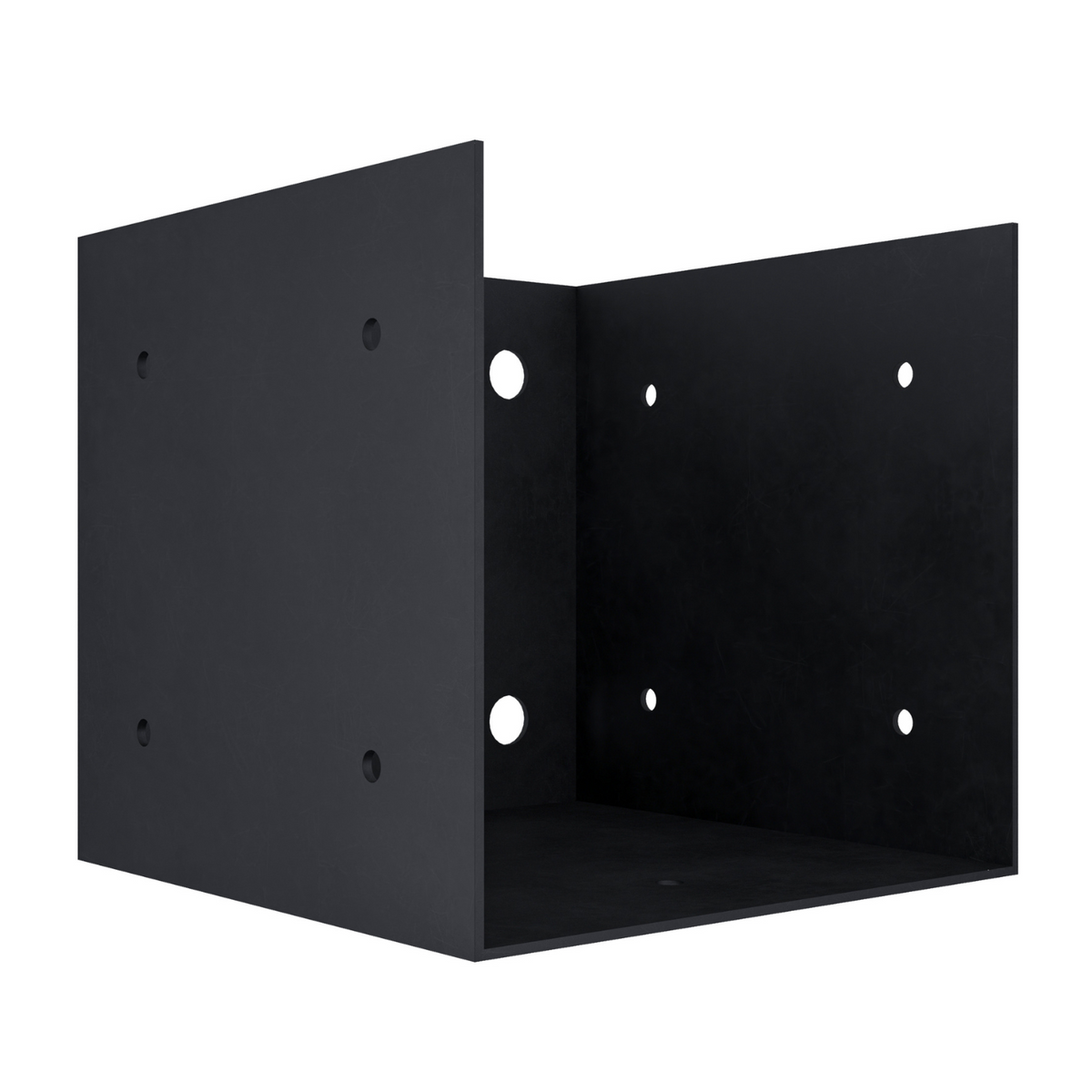

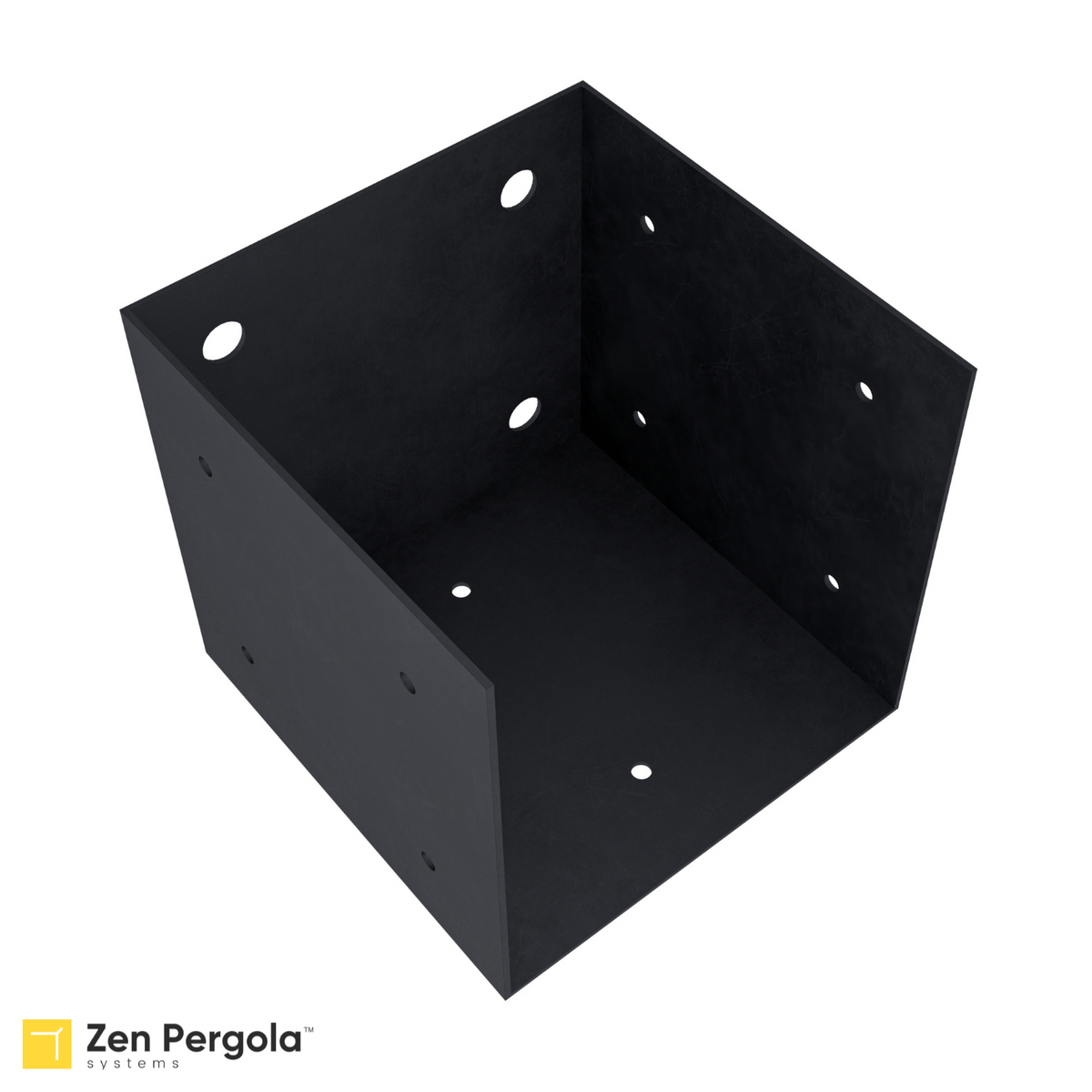

Pergola Wall Mount Bracket (for 6x6 Wood Posts)
Pergola Wall Mount Bracket (for 6x6 Wood Posts)
Regular price
$59.00 USD
Regular price
$75.00 USD
Sale price
$59.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Usage
Wall mount brackets are used to secure horizontal beams of attached pergolas to your home or another structure. If you're building a freestanding pergola, you won't need any wall mount brackets. But if you're building an attached pergola, you'll need 2-3 wall mount brackets: 2 if the attached side is 4-12 feet or 3 if the attached side is 13-24 feet.
6x6 Pergola Bracket Features
- Made with premium quality steel
- 12-gauge steel (~2.6mm thick)
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Low-profile design (anchoring holes inside the bracket to avoid unsightly lip/flange on the outside of the bracket)
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width: 5.8 inches (148 mm)
- Depth: 5.8 inches (148 mm)
- Height: 5.55 inches (141 mm)
- Inner dimensions of sleeve (open at top): 5.6 x 5.5 inches (143 x 139 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
- Holes on end plate (secured to home/structure): 4 (one in each corner) - 0.5-inch holes for larger anchoring hardware (not included)
- Holes on each side wall: 4 on left & right walls, 2 on bottom wall
- Weight: 4.5 pounds
- Not included: wood post, anchoring hardware for securing bracket to home/structure
