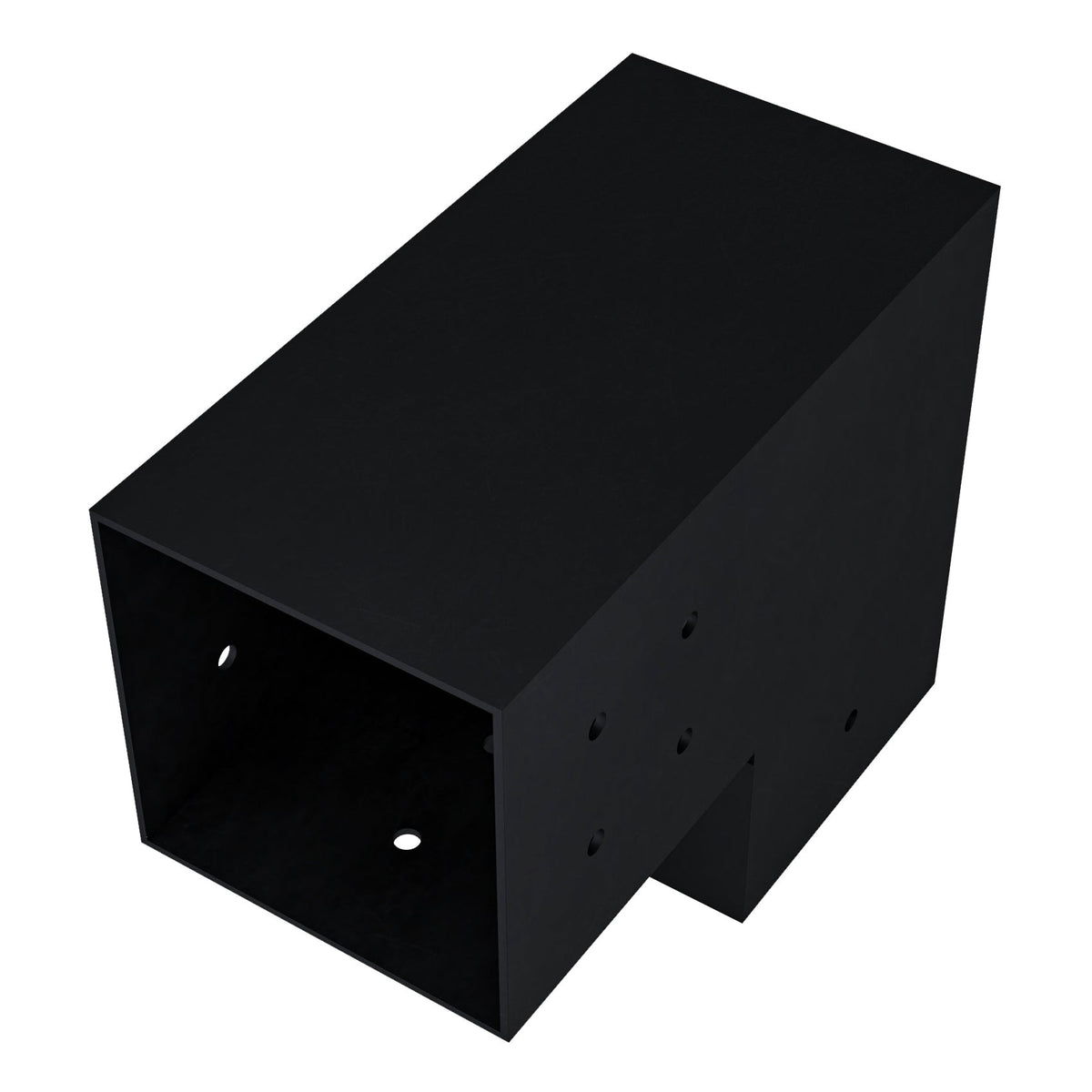

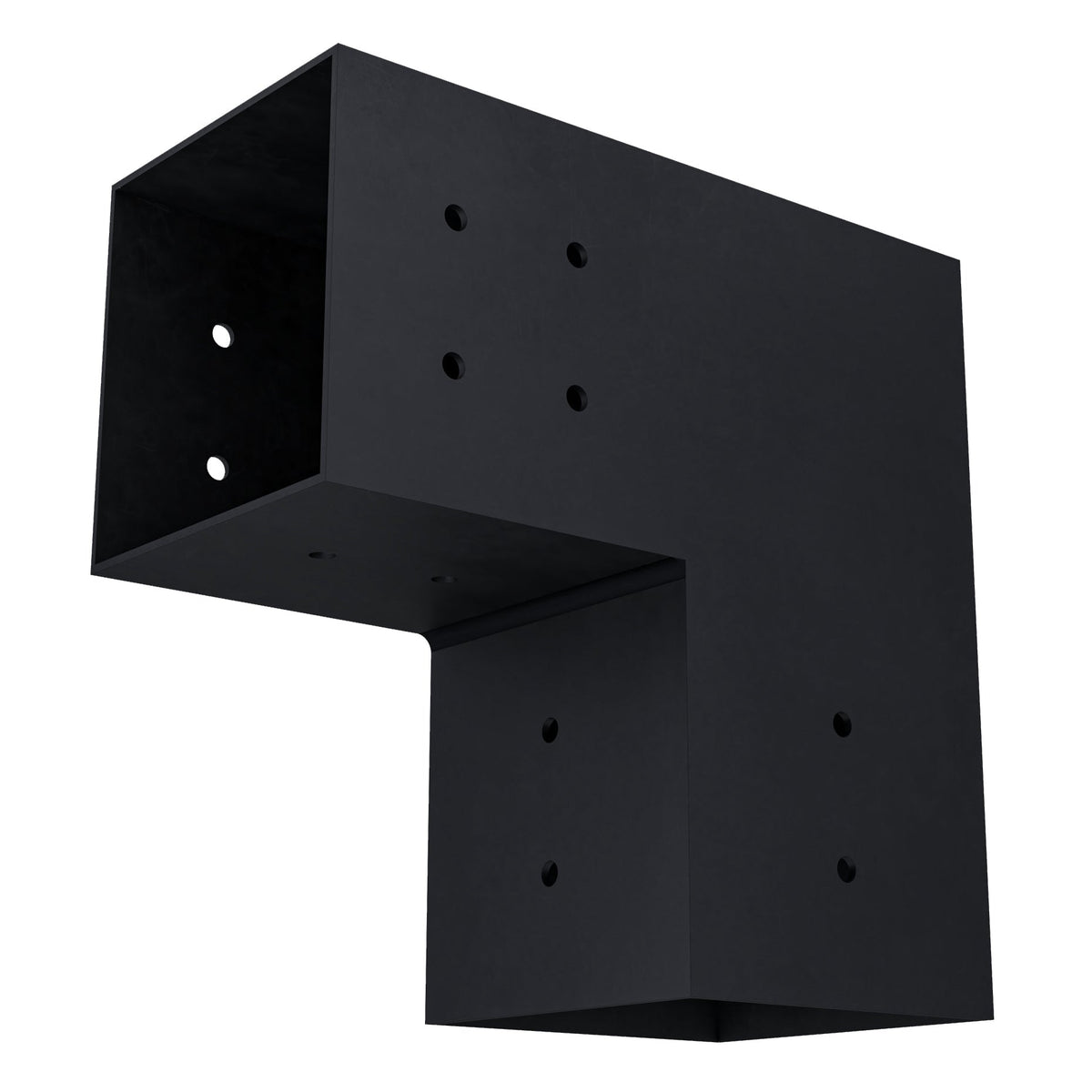

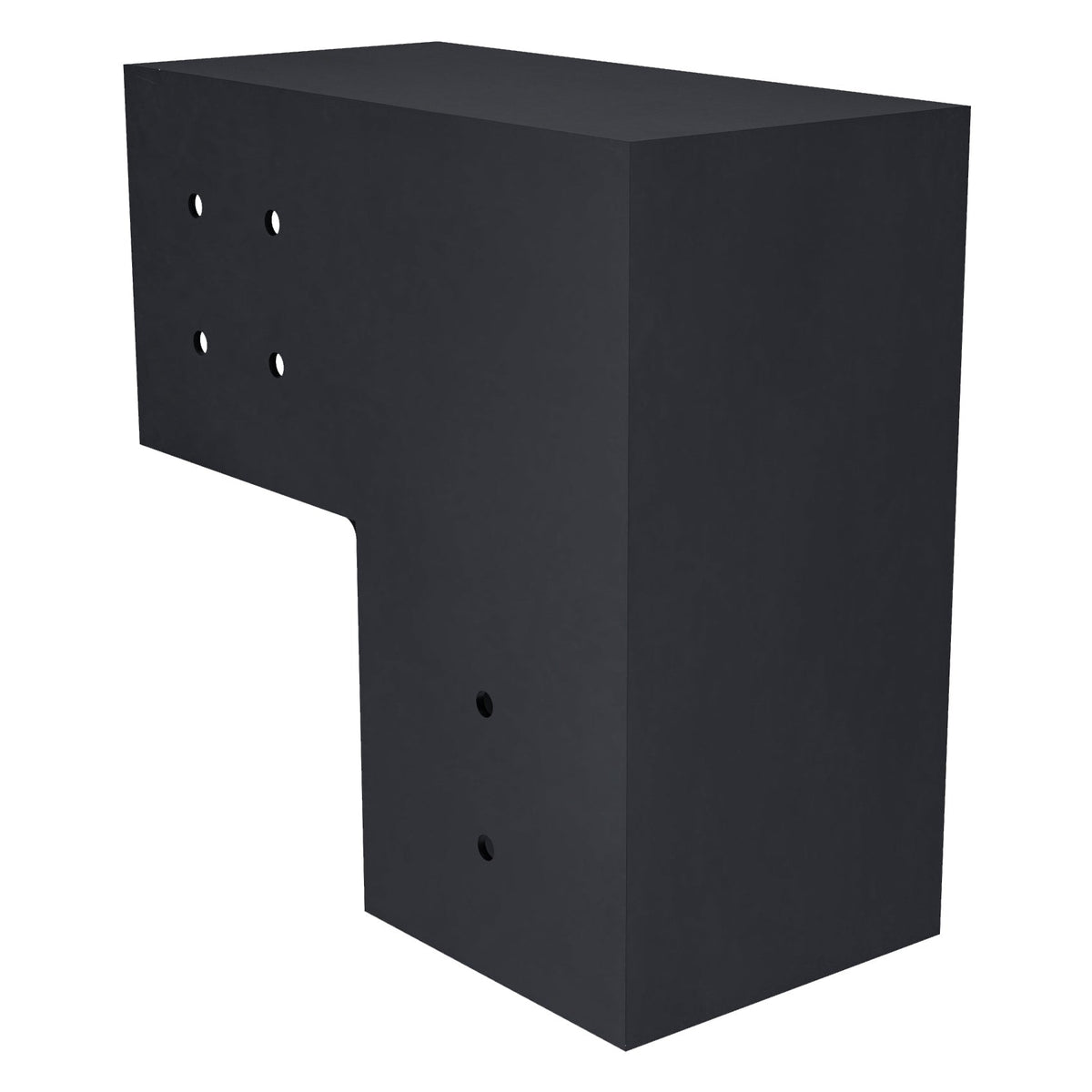

Pergola 2-Arm L Bracket (for 4x4 Wood Posts)

2-Arm L Bracket Usage

2-arm "L" brackets are used at the tops of a stand-alone privacy wall (one that is not connected to a pergola frame). They are also used when building a triangle pergola with traditional roof rafters (atop the beams).

4x4 Pergola Bracket Features

• Made with premium quality steel
• 14-gauge steel (~2.0mm thick)
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5” x 3.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty

• Shipped directly to your doorstep from Boise, Idaho

Dimensions & Specifications

• Width: 7.5 inches (190.5 mm)
• Depth: 3.75 inches (95.25 mm)
• Height: 7.5 inches (190.5 mm)
• Number of arms: 2 (1 vertical + 1 horizontal)
• Inner dimensions of each arm: 3.6 x 3.6 inches (92 x 92 mm) - made for 4x4 wood posts (which measure 3.5 x 3.5 inches)
• Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
• Weight: 3.35 pounds
• Not included: wood posts
